Starts 2010-2012, the clay blocks and clay mitts are innovative car detailing tools designed to remove surface contaminants such as brake dust, industrial fallout, tree sap, and hard water spots from vehicle paintwork, glass, and metal surfaces. Unlike traditional clay bars, clay blocks and mitts offer improved ergonomics, durability, and reusability, making them a popular choice among professional detailers and car enthusiasts alike.
Common Material: High-GSM microfiber (330–600 GSM for mitts, reinforced weave for blocks).Proprietary clay compounds (calcium carbonate/polybutadiene blends). Common process: the clay on the top and also the same sewing process of the clay block and mitt. Cutting the microfiber, take clay on it, than sewing the shape of a clay mitt and block size. The core material used in these products is a synthetic clay layer bonded onto a base material such as a sponge (for clay blocks) or microfiber cloth (for clay mitts). This document details the comprehensive production process of clay blocks and clay mitts, from raw material preparation to final packaging.
A clay mitt is a reusable detailing tool made of microfiber cloth impregnated with engineered clay particles. Designed for ergonomic use it Removes contaminants (iron fallout, tar, overspray) 3x faster than traditional clay bars.Covers larger surface areas (e.g., hoods, roofs) efficiently.Machine-washable for 100+ uses.
The primary material for the backing of clay mitts is microfiber cloth, while clay blocks often use a polyurethane foam block. The clay layer itself is typically composed of a durable synthetic rubber compound designed to mimic traditional detailing clay.

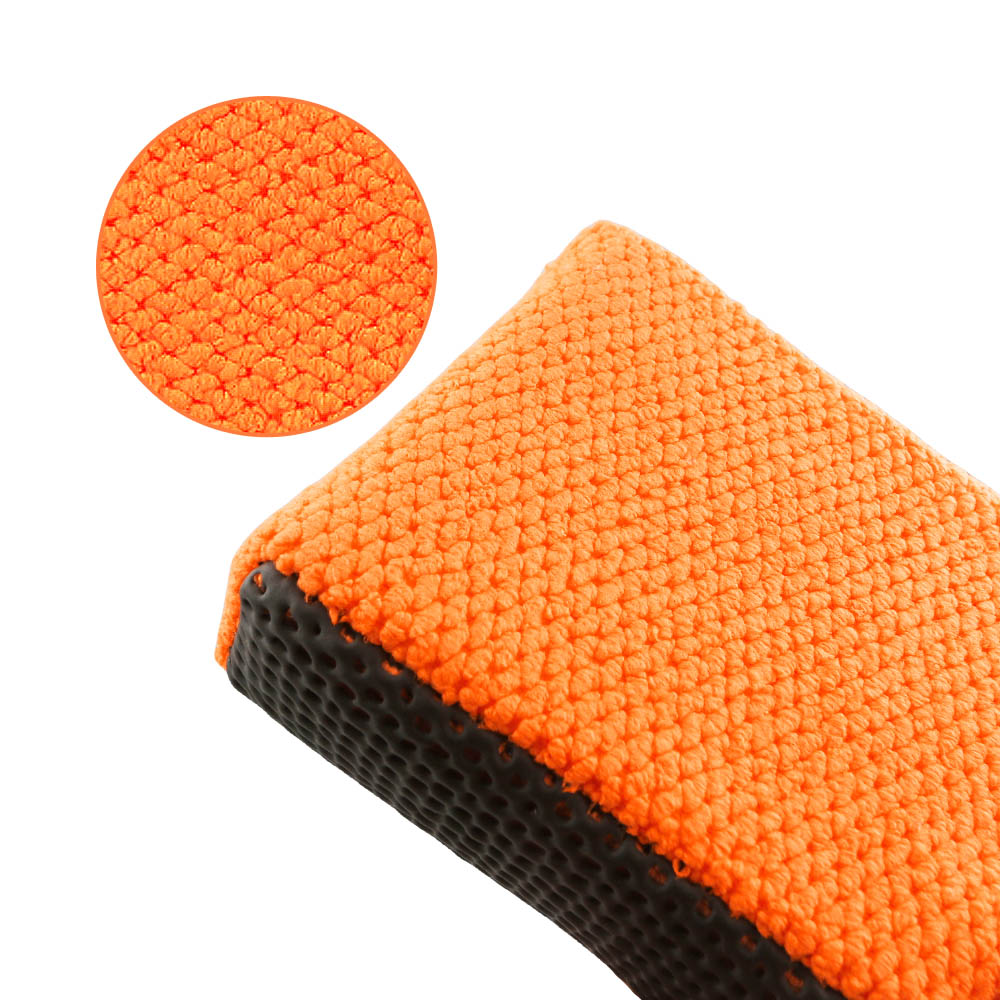

A clay block is a dense, molded clay compound with embedded abrasive-resistant microfiber mesh, offering:Enhanced durability for heavy-duty paint correction.Even pressure distribution to prevent swirl marks. Longer lifespan than conventional clay bars.
The manufacturing of clay mitts and clay blocks involves several precise steps to ensure product effectiveness, durability, and user safety. Below is a step-by-step overview of the process:
The synthetic clay material is produced using a carefully formulated mixture of polymer resins and rubberized compounds. These materials are blended at controlled temperatures to achieve the correct pliability, durability, and contamination-lifting performance.
Once the compound is thoroughly mixed, it is extruded into thin sheets of uniform thickness. These sheets are cooled, quality-checked, and cut into sizes that match the intended surface area of the clay mitt or clay block.
Food-grade calcium carbonate (60–65% by weight). / Synthetic polybutadiene rubber (25–30% for elasticity)./ Silicon dioxide (7–12% for abrasion control).Mixing & Homogenization /Ingredients blended at 185°C for uniform consistency.Color pigments added (e.g., blue for medium-grade, red for heavy-duty).Quality Control；Lab-tested for:Contaminant adhesion efficiency (per ASTM D2486)./pH neutrality (6.5–7.5) to protect paint.
2. Microfiber and Foam Preparation

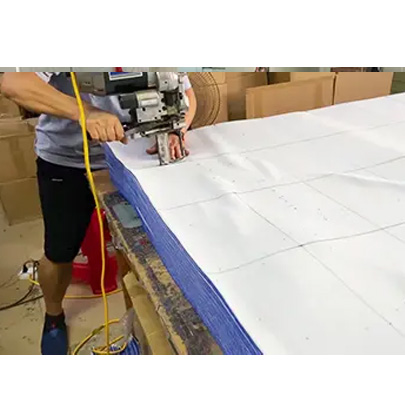

For clay mitts, high-quality microfiber cloth is used as the base material. The cloth is soft, lint-free, and resistant to tearing. It undergoes a washing and drying process to remove any residues and is then cut into precise glove-like shapes using industrial cutting machines.

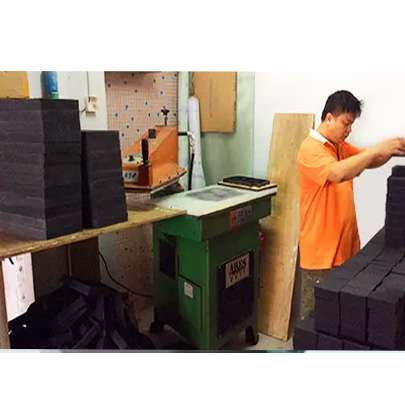

For clay blocks, a dense polyurethane foam is selected for its ergonomic flexibility and water retention capabilities. These foam blocks are also cut to standard sizes and cleaned before lamination.
Fabric Selection: Split microfiber polyester/polyamide (70/30 blend) for optimal particle trapping. /Diamond-weave patterns to enhance clay retention./Pre-Treatment;/Ultrasonic cleaning to remove manufacturing residues./Anti-static coating applied to reduce linting.
It is core and key process, Microfiber mesh sandwiched between two clay layers (1-2 mm thickness) once both the clay and backing materials are prepared, the clay sheets are bonded to the microfiber cloth or foam block using a strong, automotive-grade adhesive. This lamination process ensures the clay surface stays firmly in place during repeated use and washing.
In high-end facilities, heat-pressing machines are used to activate the adhesive and ensure uniform bonding. The pressure and temperature are precisely controlled to avoid damaging the microfiber or deforming the clay layer.

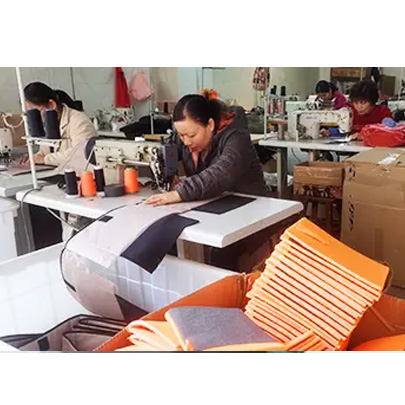

For clay mitts, the bonded microfiber cloth is stitched into a mitt shape, typically with double-reinforced edges for durability. Elastic cuffs may be added for a secure fit. Quality control checks are performed at this stage to ensure consistent sizing, shape, and stitching quality.
Each clay block and clay mitt undergoes thorough quality control inspections. This includes checking the adhesion strength of the clay layer, verifying dimensional accuracy, and inspecting for any material defects.
Approved products are then individually packed in protective sleeves or boxes to maintain cleanliness and prevent deformation during transport. Labels with usage instructions and safety tips are added as per customer or brand requirements.
The production of clay blocks and clay mitts combines advanced materials with precision engineering to deliver reliable and effective car detailing tools. Through a systematic process involving clay compounding, microfiber or foam preparation, lamination, sewing, and strict quality control, manufacturers like Brilliatech ensure each product meets the high standards demanded by professional detailers and global distributors.
